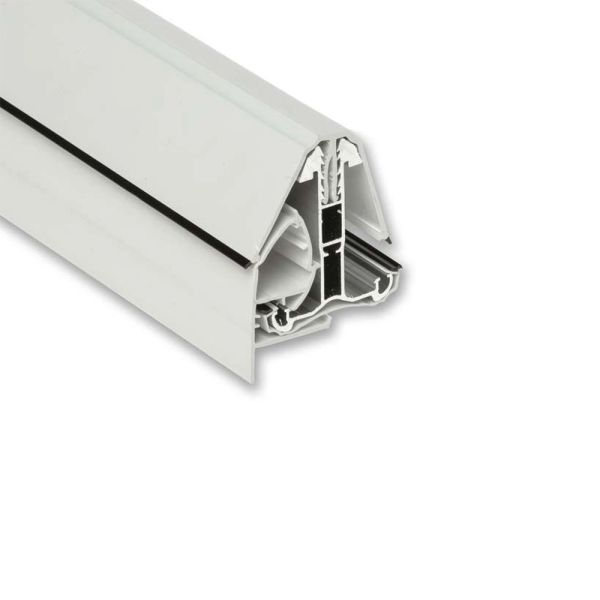

End Bar - White & Brown
The high quality Self Support End Bars from The Glazing Shop are purpose made for the right and left edges of your roof. These strong self supporting end glazing bars have an aluminium core with a knock down PVC top cap and PVC underclad giving them a neat, attractive finish. The end bars include a purpose made adjustable adaptor to finish off the edges of your roof without the need for a additional F sections or closers. Available in a range of colours, the capping and bar underclad each feature co-extruded gaskets providing a water-tight finish every time. The self supporting end glazing bar has dedicated locking points for 16mm, 25mm, 32mm and 35mm polycarbonate. It is also suitable for 16mm and 24mm glass units. View the relevant brochure for recommended bar spans, centres and dimensions.
Lengths: 2.5m, 3m, 3.5m, 4m & 6m
For prices or to order online, please choose from colours and the sizes below:
Self Supported Roof System
The Self Supporting Roof System has all you require to install a lean to roof and comes in a wide range of colours. Designed with ease of installation in mind the system suits 16mm, 25mm, 32mm and 35mm Multiwall Polycarbonate Sheets. It is also suitable for glass, supporting 24mm or 34mm glass units.
This flexible Lean To Roof System is suitable for a wide range of projects including replacement or new conservatory roofs, canopies and carports. Available in a wide range of sizes the Self Support Lean To Roof System includes self supporting glazing bars in a wide range of colours. Each comes with a single end cap however more end caps are available if you will cut your bars down on site.
The system also has system specific wall plates & eaves beams. There is also a wide range of trims and accessories to complete your project.
*Please note this self supported roof system is not cantilever in design therefore, the glazing bars still require a frontal framework / eaves beam for support.
