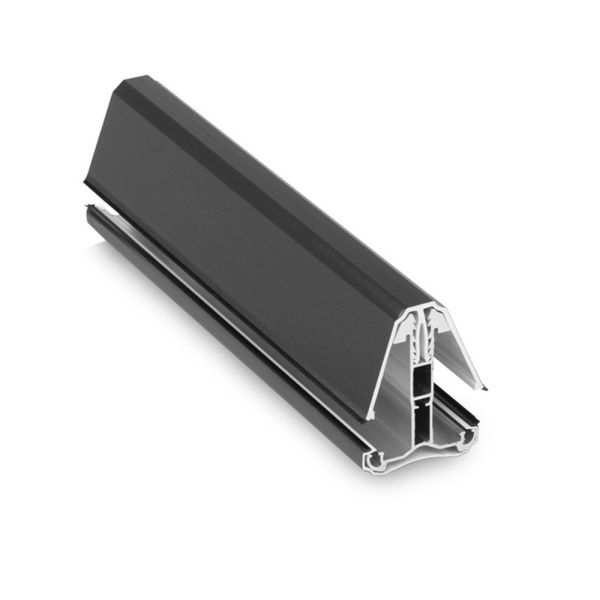

Main Bar - Anthracite Grey
Anthracite Grey Self support glazing bars with a strong aluminium core. These Grey heavy duty self supporting bars are finished with a foiled PVC knock down top cap and underclad. Both have integrated gaskets for a watertight seal. These self supported glazing bars have dedicated locking points for 16, 25, 32 and 35mm polycarbonate. They are also suitable for 16mm and 24mm glass units. There is an end glazing bar available with this system which includes an adjustable PVC adaptor to neatly finish off the ends of your roof. This bar is also available in a wide range of other colours.
Bar lengths: 2.0m, 3m, 4m & 6m
View the relevant brochure for recommended bar spans, centres and dimensions.
For prices or to order online, please choose from colours and sizes below:
Self Supported Roof System
The Self Supporting Roof System has all you require to install a lean to roof and comes in a wide range of colours including the very popular Anthracite Grey. Designed to make installation easy, the system suits 16mm, 25mm, 32mm and 35mm Multiwall Polycarbonate Sheets. It is also suitable for glass, supporting 24mm or 34mm glass units.
This flexible Lean To Roof System is suitable for a wide range of projects including replacement or new conservatory roofs, canopies and carports. Available in a wide range of sizes the Self Support Lean To Roof System includes glazing bars, wall plates & eaves beams.
All glazing bars come with one end cap as standard. Additional end caps are available seperately.
*Please note this self supported roof system is not cantilever in design therefore the glazing bars still require a frontal framework / eaves beam for support.
