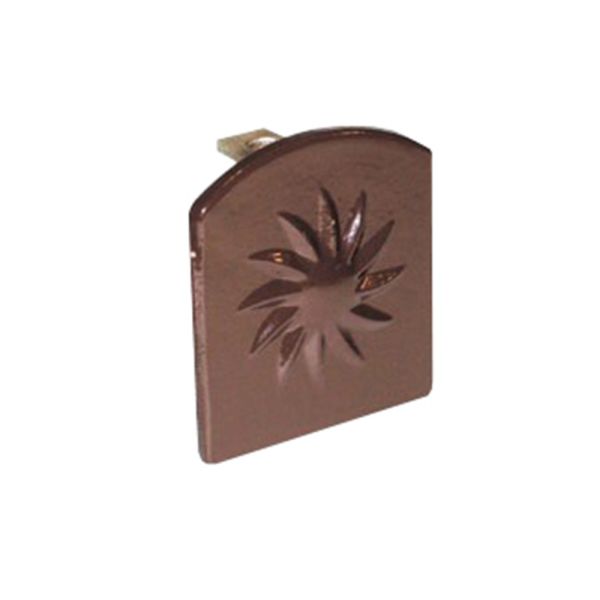

End Cap Professional Aluminium Capped bars - 50 & 60mm
Made from powdercoated cast aluminium. These caps are available in either White, Brown, Anthracite Grey and mill finish. Suitable for use with our 50mm or 60mm Aluminium capped rafter main bars. Screws are included.
Colours: White, Brown, Anthracite Grey, Mill finish
Quantity: Single
To view prices please select your required options below
Details
Powder coated cast aluminium end cap for use with the Sunwood screw down aluminium capped main bar. Suits the 50mm and 60mm wide bars. Overall height of 70mm and width of 60mm
Benefits
Contains a built in glass stop
High quality cast aluminium is strong and durable.
Powder coated to match the glazing bars for a maintenance free finish
Mill end cap available should you wish to powder coat it to another RAL colour
Fitting
There is a pre-cast tab on the back of the end cap which fits neatly into the central channel on the bar top cap. This has a pre-drilled hole to accommodate the countersunk screw which is included with the end cap. Screw through and then clip the concealment capping of the bar into place to cover.
For more information or advice please give us a call on 01536 446395.
The Glazing Shop offers a selection of glazing bars which are designed to be supported on wooden rafters. Within our range we have PVCu and aluminium capped bars available.
Our two types of PVCu Capped rafter bars are strong, lightweight and easy to fit. One bar accommodates 10mm, 16mm and 25mm Multiwall Polycarbonate Sheeting and the other 25mm, 32mm and 35mm sheets. Highly flexible they are ideal for most applications.
Our range of Aluminium Capped rafter bars offers three types of bars which are robust and maintenance free. These glazing bars accommodate all popular thicknesses of Multiwall Polycarbonate Sheeting and the 50mm and 60mm wide bars are also suitable for glass. Highly adaptable, aluminium capped bars are ideal where extreme variations in temperature are experienced or in areas which are exposed to higher winds e.g coastal areas.
